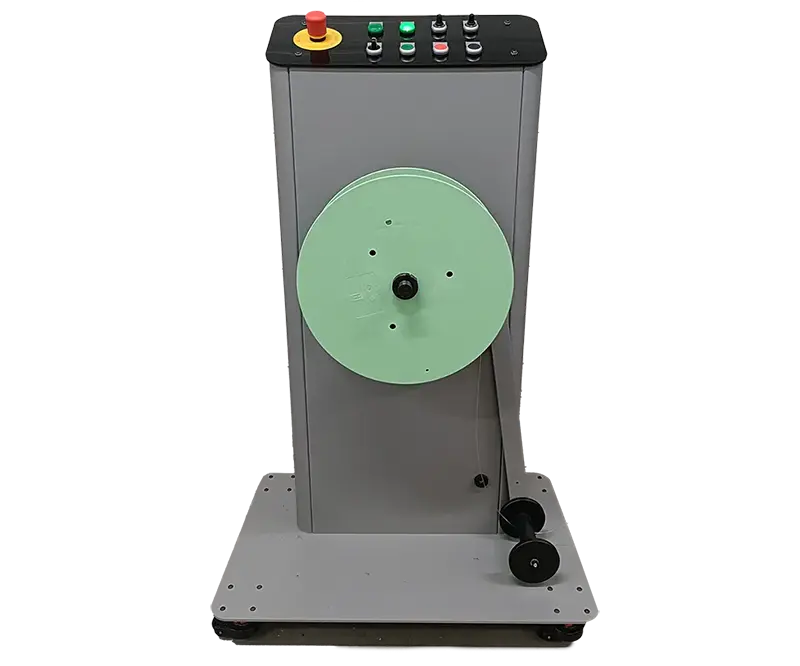

SH-600 Spool holder

Feeding MI cable smoothly into the CS-1100 (cutting and straightening machine) can be challenging, especially for cables of less than 2.0mm diameter. Tangling and inconsistencies in these delicate cables can be avoided through use of our SH-600 spool holder. It is designed to streamline the process by effectively organizing cables for a smooth, controlled and consistent inputting stream. As such, interruptions in the production process are avoided as well as downtime and potential material damage.

The SH-600 spool holder design includes an innovative tension management system with some key design features:

  • A cable tensioner and sensor controlled by software ensure that the proper cable tension is maintained at all times – essential for accuracy and efficiency
  • A well designed control panel offers ease of access to all essential operational commands
  • The motor-driven shaft offers consistency
  • Housed on 5mm steel plate with levelling wheels, it is not only a robust construction but also mobile
  • Easy access is provided for maintenance and adjustments
  • Not only is the SH-600 spool holder designed to work seamlessly with the CS-1100 cutting and straightening machine, attention has also been given to ensuring similar aesthetics

About the CS-1100?

The CS-100 is the first machine to integrate and automate multiple steps in the production of temperature sensors from MI cable. Its automated approach offers substantial cost savings while tackling several common technical challenges. Achieving a burr-free finish, for instance, requires precise cutting techniques suited to MgO insulation. Additionally, working with compact MgO demands specialized tools and methods, as improper handling can lead to premature blade wear. By minimizing human error, the CS-100 also enhances the consistency and quality of the final product.

Discover the CS-1100

Kamet and Antech Solutions: The Machines Factory

More detailed information can be found on the The Machines Factory website and our experts are also on hand to advise on the use of the SH-600 spool holder for your specific parameters or requirements.

The Machines Factory, a joint collaboration between two Dutch companies: Kamet and Antech Solutions B.V.. Antech specializes in the research, development and prototyping of machines. For more information, please visit our website at themachinesfactory.com.
